Intro to HTML/CSS

Class 1

Our Host

Momentum

Momentum

Welcome!

Girl Develop It is here to provide affordable and accessible programs to learn software through mentorship and hands-on instruction.

Some "rules"

  • We are here for you!
  • Every question is important
  • Help each other
  • Have fun

Welcome!

Tell us about yourself.

  • Who are you?
  • What do you hope to get out of the class?
  • What is your favorite or dream vacation destination?

What is HTML?

HTML is the code that allows us to build websites

Screenshot of the Girl Develop It Homepage

What is HTML?

If you 'view the source', you see this

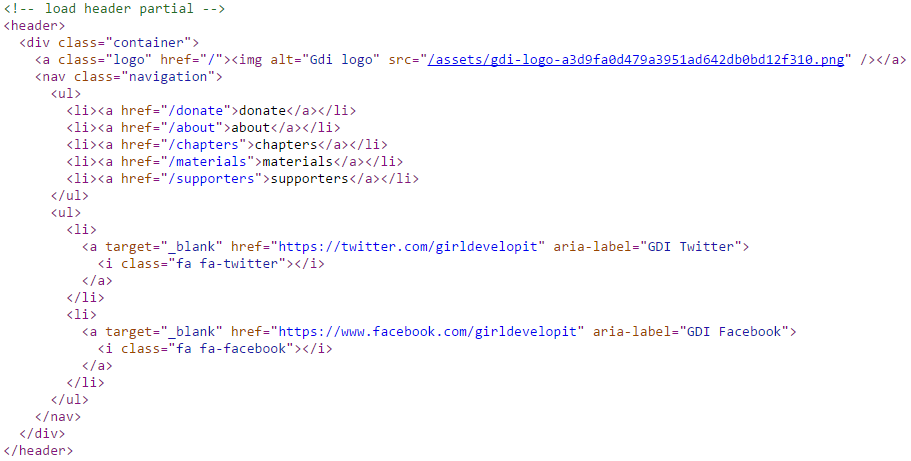

Screenshot of the Girl Develop It page source code

History of HTML

  • Invented by Tim Berners-Lee
  • Created "hypertext" to share scientific papers
  • First web page August 6, 1991
  • Standardized by w3 Consortium (pack of super nerds)

History of HTML

  • HyperText Markup Language
  • Early 90s
  • HTML 4 in 1997
  • XHTML in 2000
  • HTML 5 in 2014

Terms

  • Web design
    The process of planning, structuring and creating a website
  • Web development
    The process of programming dynamic web applications
  • Front end
    The outwardly visible elements of a website or application
  • Back end
    The inner workings and functionality of a website or application.

Clients and servers

How your computer accesses websites

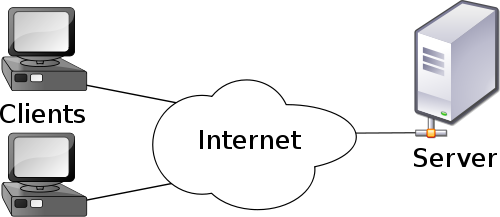

Diagram showing computer connecting to server

Tools

  • Browser
    Chrome
    Firefox
  • Development Toolkit
    Chrome - Inspector
    Firefox - Firebug
  • Text Editor
    Atom - Windows, Mac
    Notepad++ - Windows
    Sublime Text - Windows, Mac, Linux
    TextWrangler - Mac

Get Started: Folder Structure

All the files for your site should be stored within the same folder.

This includes:

  • HTML Files
  • CSS Files
  • Images
  • Script files
  • Anything else that will appear on your site

Note: File names should not include spaces or special characters. File names ARE case sensitive.

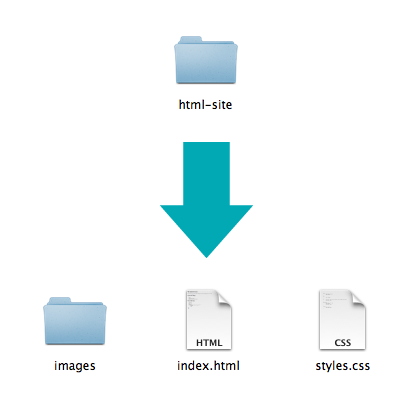

Diagram showing html-site folder with sub-folder for images, index.html, and styles.css

Goals

Soccer goal on beach

Photo credit: Corscri Daje Tutti! cc

Final project

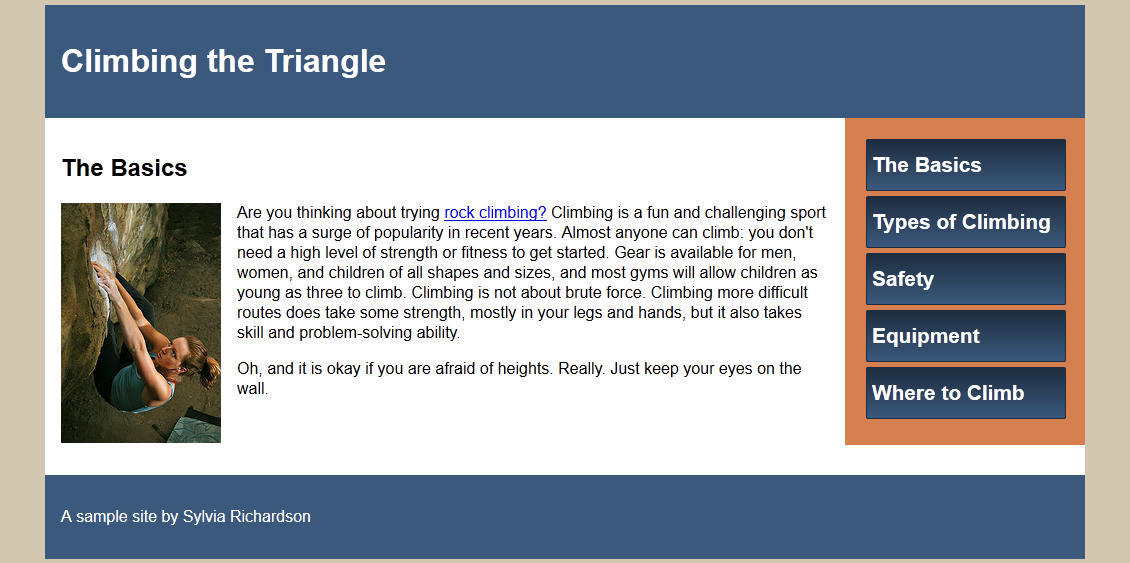

Screenshot of a sample page

By the end of the class, you will have built a simple site using HTML and CSS on a topic of your choice. Here is one about rock climbing.

Anatomy of a website

Your Content
+ HTML: Structure
+ CSS: Presentation
= Your Website

A website is a way to present your content to the world, using HTML and CSS to present that content & make it look good.

Anatomy of a website

Concrete example:

  • A paragraph is your content
  • Putting your content into an HTML tag to make it look like a paragraph is structure
    <p>A paragraph is your content</p>

  • Making the font of your paragraph green and 24px is presentation

    A paragraph is your content

Anatomy of an HTML element

  • Element
    • An individual component of HTML
    • Paragraph, heading, table, list, div, link, image, etc.
  • Tag
    • Marks the beginning & end of an element
    • Opening tag and Closing Tag
    • Tags contain characters that indicate the tag's purpose
      <tagname>Stuff in the middle</tagname>
    • <p> This is a sample paragraph.</p>

Tag Breakdown

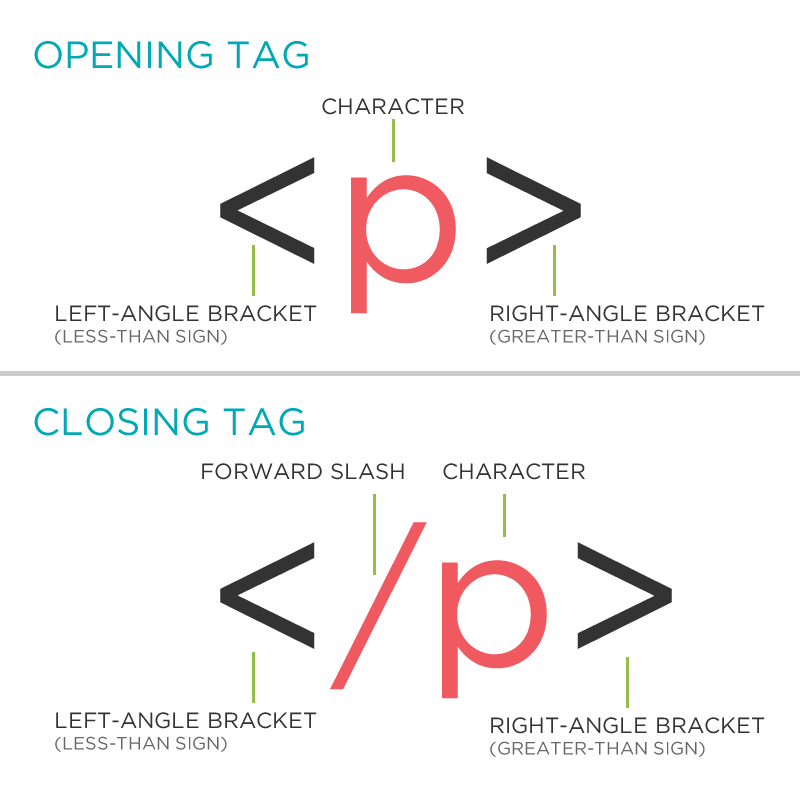

Tag breakdown

Anatomy of an HTML element

  • Container Element
    • An element that can contain other elements or content
    • A paragraph (<p>) contains text
  • Stand Alone Element
    • An element that cannot contain anything else
    • <br/>
      <img/>


Anatomy of an HTML element

  • Attribute
    • Provides additional information about the HTML element
    • Class, ID, language, style, identity, source
    • Placed inside an opening tag, before the right angle bracket.
  • Value
    • Value is the value assigned to a given attribute.
    • Values must be contained inside quotation marks.
    • <div id="copyright">©Girl Develop It logo 2016</div>
      <img src="my_picture.jpg" />
      <a href="http://girldevelopit.com">Girl Develop It</a>


Doctype

The first thing on an HTML page is the doctype, which tells the browser which version of the markup language the page is using.

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML
4.01 Transitional//EN" "http://
www.w3.org/TR/html4/loose.dtd">
<!DOCTYPE html>

* The doctype is case-insensitive.
DOCtype, doctype, DocType and DoCtYpe are all valid.

HTML Tag

After <doctype>, the page content must be contained between <html> tags.

<!DOCTYPE html>
<html>

</html>

Head and Body Tags

Head: The head contains the title of the page & meta information about the page. Meta information is not visible to the user, but has many purposes, like providing information to search engines.

Body: The body contains the actual content of the page. Everything that is contained in the body is visible to the user.

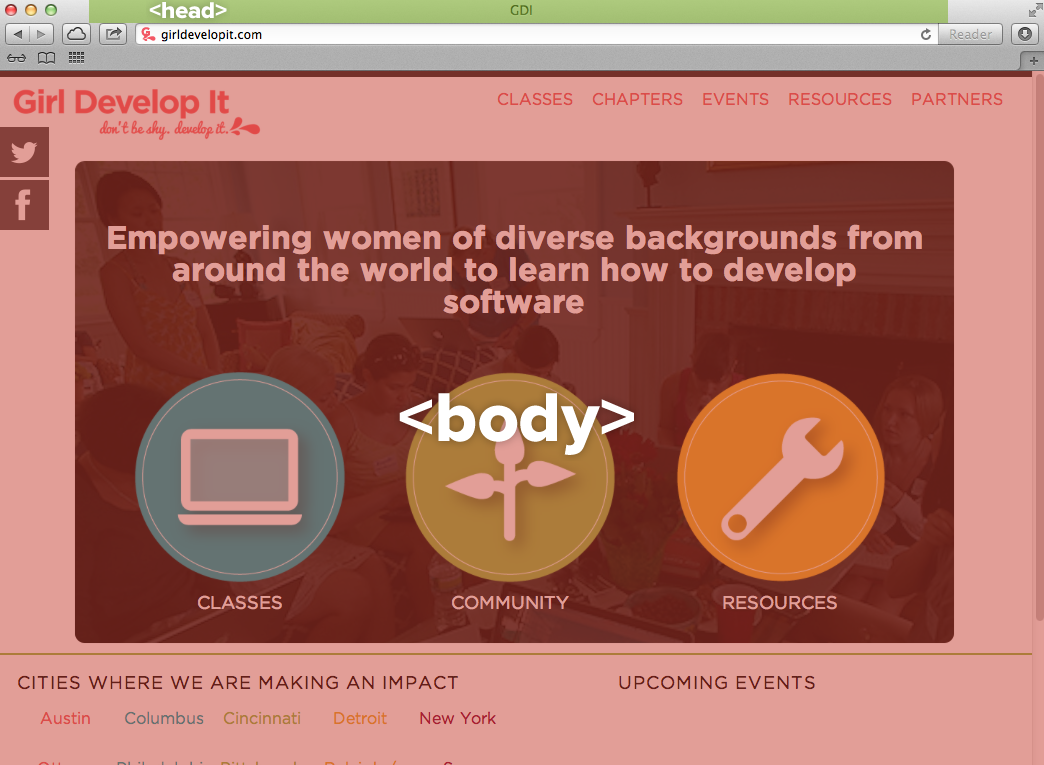

Head and Body Tags: Example

example of head and body

Head and Body Tags

<!DOCTYPE html>
<html>
  <head>
    <title>Title of the page </title>
  </head>
  <body>
    The page content here.
  </body>
</html>

Let's develop it!

Let's get our web page set up with a doctype, head, title and body.

Later we'll add some content.

Nesting

All elements "nest" inside one another

Nesting is what happens when you put other containing tags inside other containing tags. For example, you would put the <p> inside of the <body> tags. The <p> is now nested inside the <body>

Nesting Order

Nesting owl dolls

Whichever element OPENS first CLOSES last

Nesting: Example

Elements are 'nested' inside the <body> tag.

<body>
  <p>A paragraph inside the body tag</p>
</body>

Paragraphs 'nested' inside list items.

<ul>
  <li>
    <p>A paragraph inside a list item</p>
  </li>
</ul>

Element: Paragraph

<p>Paragraph 1</p>
<p>Paragraph 2</p>
<p>Paragraph 3</p>
<p>Paragraph 1</p> <p>Paragraph 2</p>  <p>Paragraph 3</p>
<p>Paragraph 1</p>


<p>Paragraph 2</p>
<p>Paragraph 3</p>

Paragraph 1

Paragraph 2

Paragraph 3

* White space is only for humans. You can write your code with any spacing.

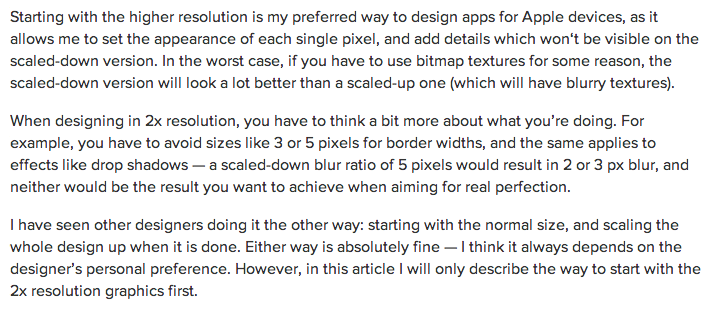

Example: Paragraphs

Paragraphs allow you to format your content in a readable fashion.

Example of Paragraphs in the wild

* You can edit how paragraphs are displayed with CSS

Element: Heading

<h1>Heading 1</h1>
<h2>Heading 2</h2>
<h3>Heading 3</h3>
<h4>Heading 4</h4>
<h5>Heading 5</h5>
<h6>Heading 6</h6>

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5
Heading 6

* Heading number indicates hierarchy, not size. Think of outlines from high school papers

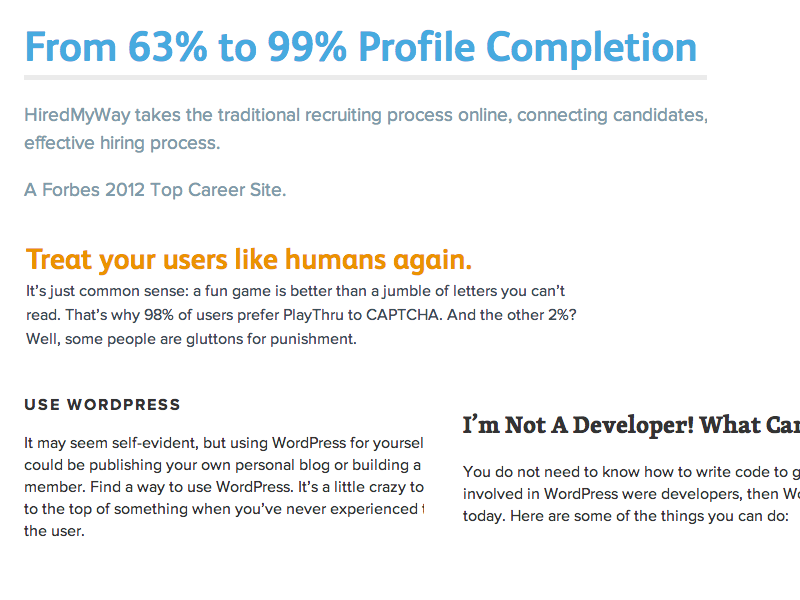

Example: Headings

Example of headings

Formatted text

<p>
Here is a paragraph with <em>emphasized</em> text and <strong>important</strong> text.
</p>

Here is a paragraph with Emphasized text and Important text.

* Notice: em and strong are meant to indicate meaning through style. If you want to have italicized for appearance and not to communicate meaning, you should use CSS.

Let's Develop it!

Let's add some content to our site!

Add one of each level of heading with 1-2 short paragraphs of text below each heading.

Use <strong> and <em> within a few paragraphs.

Element: Link

Links have three components

  • Tag: <a></a>
  • Href attribute: "http://www.girldevelopit.com"
  • Title attribute: "Girl Develop It"
<a href="http://www.girldevelopit.com" title="Girl Develop It">Girl Develop It</a><

Girl Develop It

The <a> tag surrounds text or images to turn them into links

Link Attributes

Links can have attributes that tell the link to do different actions like open in a new tab, or launch your e-mail program.

<a href="home.html" target="_blank">Link Text</a>

Link opens in a new window/tab with target="_blank"

<a href="mailto:sponsorships@girldevelopit.com">E-mail us!</a>

Adding mailto: directly before the email address means the link will open in the default email program.

Relative vs. Absolute paths for links & images

  • Relative
    Relative paths change depending upon the page the link is on.
    • Links within the same directory need no path information. "filename.jpg"
    • Subdirectories are listed without preceding slashes. "img/filename.jpg"
  • Absolute
    • Absolute paths refer to a specific location of a file, including the domain. "http://www.girldevelopit.com/chapters/detroit"
    • Typically used when pointing to a link that is not within your own domain.

Let's Develop It

Let's add links to our site!

Add links that open in the same window, a new window and link to an e-mail address.

Element: Image

Images have three components

  • Tag: <img />
  • Src attribute: "https://assets.brandfolder.com/4btx26fz/original/circle-gdi-logo.png"
  • Alt attribute: "Girl Develop It logo"
<img src="https://assets.brandfolder.com/4btx26fz/original/circle-gdi-logo.png"
alt="Girl Develop It logo"/>

* Notice: This tag is our first example of a stand-alone or "self-closing" element.

Element: Line Break

<p>
The Web site you seek <br/>
Cannot be located, but <br/>
Countless more exist.
</p>

The Web site you seek
Cannot be located, but
Countless more exist.

Let's Develop It!

Let's add some images and line breaks to our page.

We can even turn our images into links.

Element: Unordered and ordered lists

<ul>
<li>List Item</li>
<li>AnotherList Item</li>
</ul>
<ol>
<li>List Item</li>
<li>AnotherList Item</li>
</ol>

Unordered list (bullets)

  • List Item
  • Another List Item

Ordered list (sequence)

  1. List Item
  2. Another List Item

Lists: Examples

Lists can be used to organize any list of items.

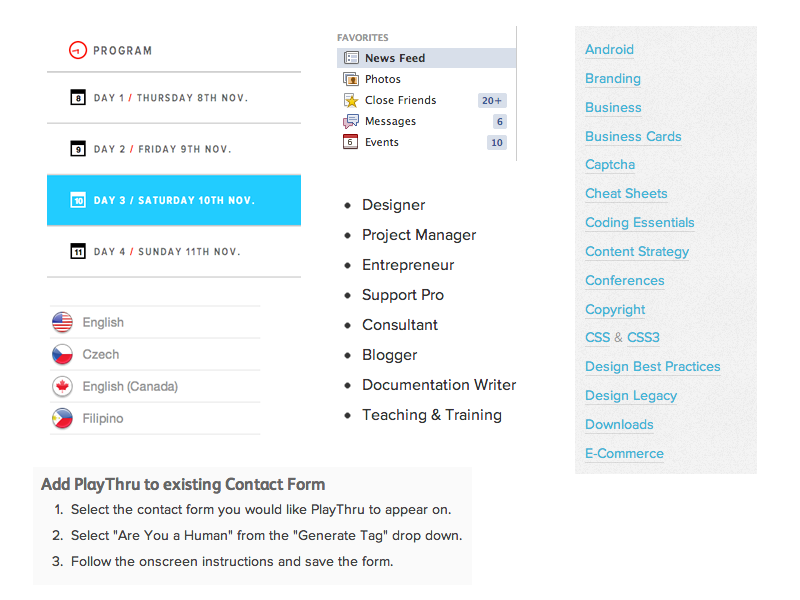

Examples of lists

You'd be surprised how often lists are used in web design.

Let's Develop it!

Let's add one of each ordered and unordered lists to our page.

We can make a list of links or even a list of images!

Comments

You can add comments to your code that will not be seen by the browser, but only visible when viewing the code.

<!-- Comment goes here -->

Comments can be used to organize your code into sections so you (or someone else) can easily understand your code. It can also be used to 'comment out' large chunks of code to hide it from the browser.

<!-- Beginning of header -->
<div id="header">Header Content </div>
<!-- End of header -->

<!--
<ol>
<li>List Item</li>
<li>Another List Item</li>
</ol>
-->

Tables

Tables are a way to represent complex information in a grid format.

Tables are made up of rows and columns.

<table>
<tr>
<th>Head</th>
<th>Head</th>
</tr>
<tr>
<td>Data</td>
<td>Data</td>
</tr>
</table>
Head Head
Data Data

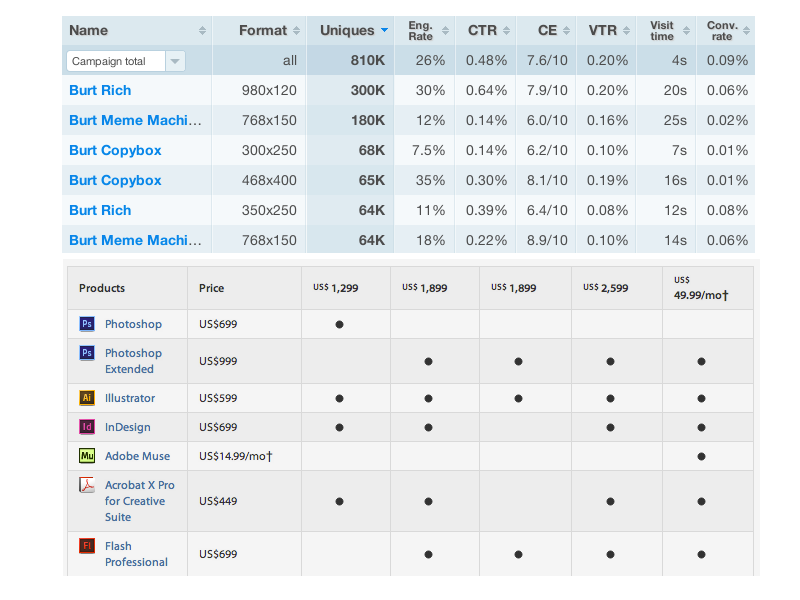

Tables: Examples

Tables can be styled with CSS to add zebra striping or to highlight important rows/columns.

Example of tables

Character codes

There are character codes for many different characters in many different languages

  • Delta: &delta; δ
  • Copyright symbol: &copy; ©
  • Grave: &grave; `
  • An grave a: &agrave; à
  • A full list is available at htmlandcssbook.com

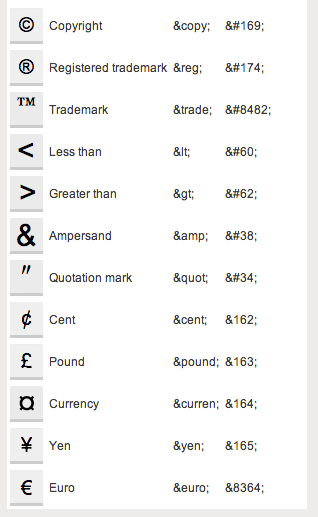

Example of Characters

Questions?
